  1. User Guides
  2. Deploying MobiusFlow On-Prem
  3. Deploying MobiusFlow to approved Hardware (Using BalenaCloud)

Deploy MobiusFlow to Your Fleet

Deploy MobiusFlow® to a balenaCloud fleet

PreviousAdding Your First DeviceNextAdding Your Licence

Last updated 5 months ago

What You Will Need?

  1. A balenaCloud account with Microservices access (this requires a paid account)

  2. A compatible balenaCloud fleet (Up Board, Intel NUC or Raspberry Pi 4)

You should always backup your MobiusFlow® device before deploying a new version.

See for more details

Deploying from balenaHub

is a market place for balena.io compatible applications ready to be deployed to your device with just a few clicks.

Navigate to your and login in

Navigate to to select which version of MobiusFlow® to deploy

Navigate to the Apps page

Search for MobiusFlow

If this guide is being followed in the context of deploying MobiusFlow Connector software to as Raspberry Pi, ensure MobiusFlow Connector apps are used instead of the standard MobiusFlow App.

Select the correct device type

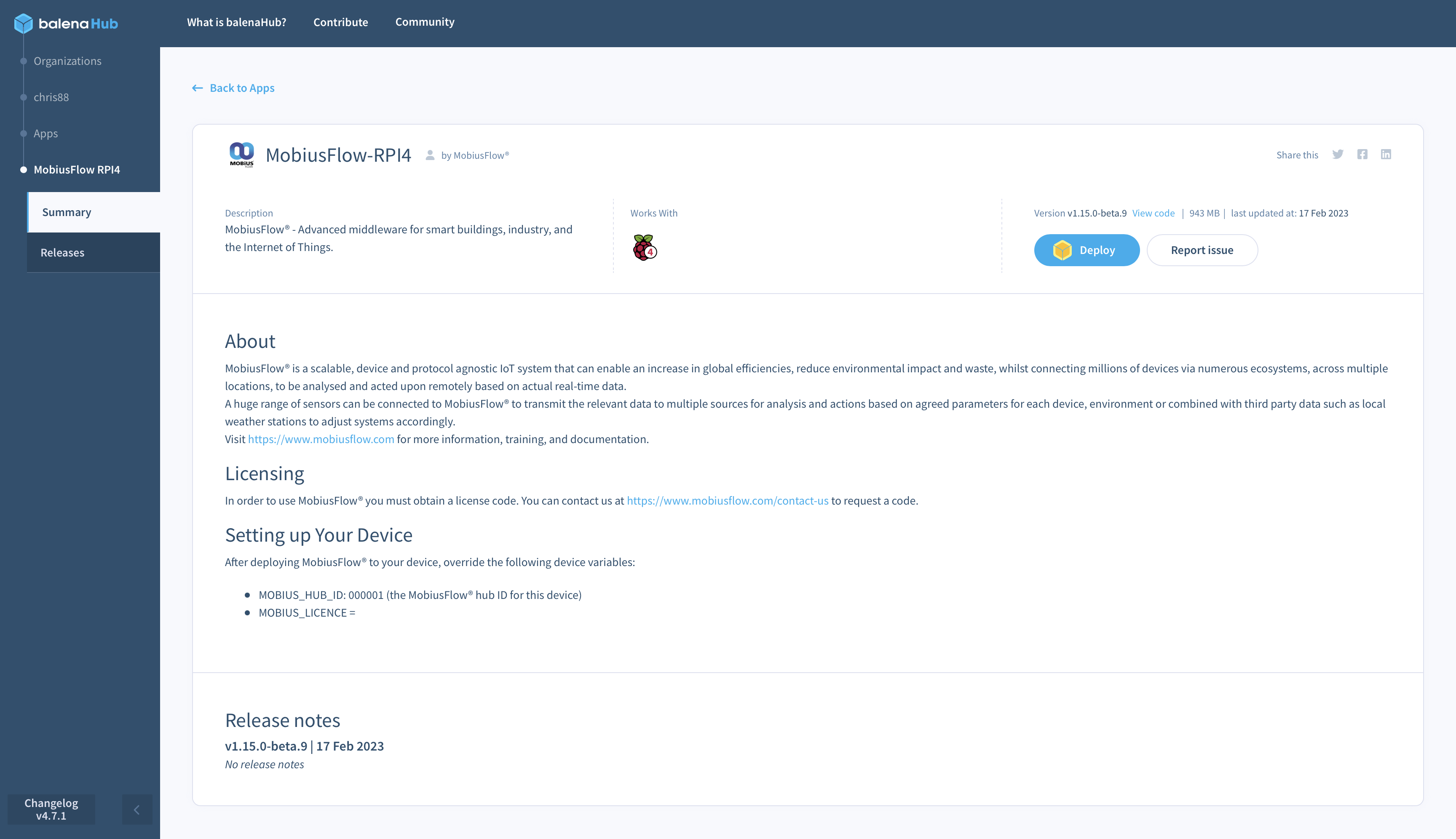

Click on the Deploy button

Balena will switch to your balenaCloud dashboard

If you already have a new fleet or want to upgrade the MobiusFlow® version on existing devices, select Use an existing fleet instead

Select the fleet from the drop down and click on the Deploy to fleet button

After a few seconds you will see the new release being built for your fleet

This will take a minute or two. Once the build is complete you will see the release on the dashboard. All devices, which have not been pinned to a specific release, in your fleet will automatically start to update to the new release.

You can also view the release history in the Releases page of your fleet.

Click on a device Summary to see which release it is running. You can also pin device to specific releases on this screen

You can create a new fleet here or deploy to an existing fleet. If creating a new fleet refer to the section for details on what settings are required

📖
Creating a Fleet
Backup and Restore
BalenaHub
balenaCloud dashboard
balenaHub
balenaHub search
Deploy MobiusFlow® to fleet
Create new fleet or deplot to existing fleet
Choose an existing fleet
New release building
New release deployed
Device details
