Objects

What are MobiusFlow objects and how are they used?

MobiusFlow Objects represent real or virtual devices such as sensors, rooms, pieces of equipment, and machinery. All objects are based on an Object Profile which describes the shape of the object i.e. what properties (resources) an objects has, the data type of each property (resource), and metadata describing the object and it properties.

MobiusFlow object properties are called resources. A resource holds a single value associated with an object.

E.g. an air quality sensor object may have separate resources for temperature, humidity, and CO₂ level.

For more information on objects and resources read the MobiusFlow Architecture article.

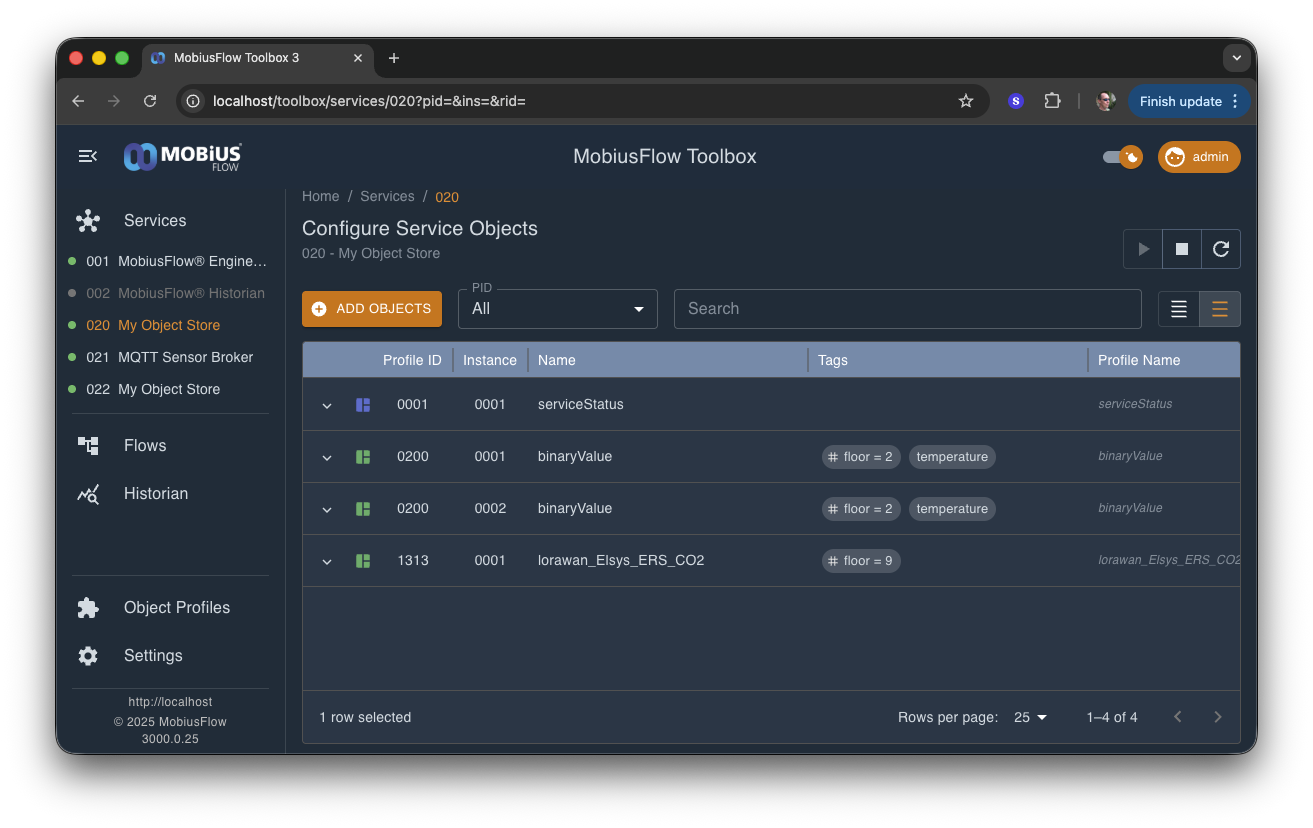

Objects must belong to a service. To add new objects or configure existing objects on a service open the Service's Objects page by clicking on the service in the main menu or clicking on the main body of a service's card on the Services page.
