Object Profiles Page

Object Profiles Page

To open the Object Profiles page click on Object Profiles in the main menu.

You must have Administrator or Editor roles to see the Object Profiles option in the main menu

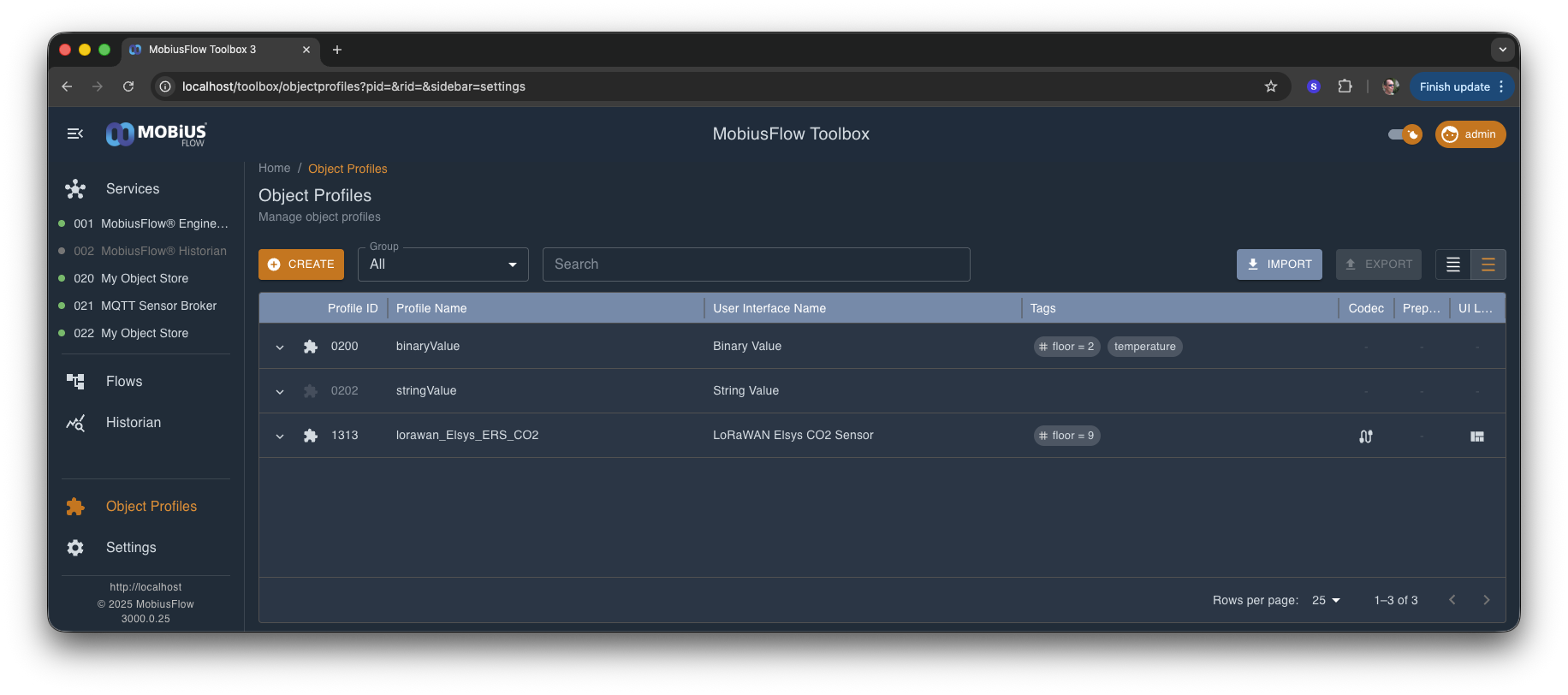

The object profiles table shows a list of all of the profiles that exist on this instance of MobiusFlow. Any profiles that have not been used to create objects, and therefore can be deleted are shown with a greyed out PID and icon.

Above the table is a toolbar with options to

• Create a new profile

• Filter the list by profile group

• Search for a profile - this filters by PID and profile name

• Import and export profiles

• Set the density of the grid

Clicking on a profile in the table opens the Profile Settings Sidebar. The width of the sidebar can be changed by dragging on the vertical splitter.
